Hyosung GV650SE Special Limited 30th Anniversary Edition, 2009






Hyosung GV650SE Special Limited 30th Anniversary Edition, 2009

Specifications
Engine
2 cylinder DOHC 8 valve 647cc liquid-cooled 90
Cylinders: V-2
Power: 80hp @ 9000rpm
Max RPM: 10,500RPM
Fuel System: Electronic Fuel Injection

Starter system
Electric

Front suspension
43mm inverted forks, adjustable rebound and compression

Rear suspension
Adjustable Preload

Wheel base
66.9 in.

Dry weight
485 lbs. (218kg)

Transmission
5 speed (1 down, 4 up)
Drive: Belt

Brake system
Double Disc Front, Single Disc Rear

Fuel tank
4.49 gal. Fuel Tank: 16 Litres

Tires:
180/55-ZR17 Rear, 120/70-ZR18 Front

Dimensions:
LxWxH: 2430x840x1150mm
Seat Height: 705mm

Ground Clearance:
160mm

Hyosung GV650 Aquila, 2009



Hyosung GV650 Aquila, 2009

Specifications

ENGINE
Type Four-stroke, water-cooled
DOHC 8 Valve, 90-degree V-twin
Displacement (cc) 647
Maximum Power 52.4 kW (72.1 HP)
Fuel System Twin 39mm carburetors
Starting System Electric

CAPACITY
Fuel Tank (litres) 16

TRANSMISSION
Clutch Wet Multi-Plate
Gears 5 Speed

CHASSIS
Front Tyre 110/70-17 54H
Rear Tyre 180/55-17 69H
Front Suspension 41mm USD Forks
Rear Suspension Twin Shocks
Front Brake Twin Discs
Rear Brake Disc

DIMENSIONS AND DRY MASS
Overall Length (mm) 2,430
Overall Width (mm) 840
Overall Height (mm) 1,155
Wheel Base (mm) 1,665
Dry Mass (kg) 216
Seat Height (mm) 675

ACCESSORIES
Cruiser Muffler Sports Carrier
Engine Guard Windshield
Tinted Windshield Backrest
Footboards

Husqvarna SM450R, 2009



Husqvarna SM450R, 2009

Specifications
Engine
Type Single cylinder, 4-stroke, DOHC, 4 valve
Bore 97 mm
Stroke 60.76 mm
Displacement 449 cc
Compression ratio 12.9 : 1
Starting Electric (with automatic decompressor)
Cooling Liquid-cooled
Radiator 2
Lubrication Dry sump with 2 oil pump rotors and cartridge filter
Ignition Digital C.D.I., with variable advance
Spark plug type NGK CR 8EB
Spark plug gap 0.7 mm
Clutch Wet, multi-plate, hydraulic control
Driving disc number 8
Driven disc number 7

Chassis
Type Steel single tube cradle with steel round tubes
Rear frame in light alloy
Front suspension MARZOCCHI USD telescopic hydraulic fork with advanced axle compression and rebound stroke adjustment
Fork leg diameter 50 mm
Fork travel 250 mm
Rear suspension SACHS Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment)
Rear wheel travel 290 mm
Front brake 320 mm BREMBO floating disc type with hydraulic control and radial caliper
Rear brake 240 mm BREMBO floating disc type with hydraulic control and floating caliper
Rim front 3.50" x 17", light alloy
Rim rear 4.25" x 17", light alloy
Tyre front 120/70-17" PIRELLI MTR 21 Dragon-EVO
Tyre rear 150/60-17" PIRELLI MTR 22 Dragon-EVO

Transmission
Primary drive Secondary drive
Engine sprocket 23 Z/teeth Trans sprocket 15 Z/teeth
Clutch gear 63 Z/teeth Rear wheel sprocket 42 Z/teeth
Transmission ratio 2.739 Transmission ratio 2.800
Type Constant mesh gear type Chain D.I.D 520 V6
Speed 6
Internal ratios 2.000 (28/14) Overall ratios 15.339/td>
2nd 1.611 (29/18) 2nd 12.356
3rd 1.333 (24/18) 3rd 10.226
4th 1.086 (25/23) 4th 8.336
5th 0.920 (23/25) 5th 7.056
6th 0.814 (22/27) 6th 6.249

Electrical Equipment
Voltage 12 V
Head light 35/35 W
Pilot light 3 W
Tail light 5 W
Stop light 21 W
Turn signal 10 W
Battery 12 V - 6 Ah

Husqvarna SM125, 2009








Husqvarna SM125, 2009

The SM 125 has become an icon for sixteen-year-olds, a sales phenomenon and a new fashion. It is the starting point for those who want to experience the thrills of off-roading but who also want a bike that is perfectly suited to everyday use. Easy to ride, light and manoeuvrable, the 2009 version of the SM 125 has everything it takes to become leader in its class.

The SM 125 is available in either red and white colour scheme or the more sophisticated black version. The white frame and black anodised wheel make the two-stroke look more like the bigger four-stroke version. The highly successful 125 engine has seen improvements “borrowed” from racing models and has been tuned to improve pick-up and offer more output in the low to mid range power band.

The SM 125 features integrated ECS (Electronic Carburetion System) that administers exactly the right amount of fuel (both the air/petrol and oil mix) and that was developed in collaboration with Dell’Orto. The control unit also governs the ignition system. While keeping costs under control and sales prices competitive, this brings the two-stroke 125 engine to Euro 3 standards yet keeps all the advantages that two-stroke engines offer: lightness, performance and low running costs.

As regards suspension, the SM 125 now has specially designed PaioIi forks to enhance the performance characteristics of the model and to compliment the shock absorber.

The new digital instrumentation displays speed, time, mileage, rpm and has a trip-meter as well as the normal warning lights (indicators, full beam, dipped beam, service due etc.).

Husqvarna CR125, 2009

Husqvarna CR125, 2009

Specifications

Engine
Type Single cylinder, 2-stroke, reed valve and H.T.S. valve with mechanical control on exhaust port
Bore 54 mm
Stroke 54.5 mm
Displacement 124.82 cc
Compression ratio 8.8 : 1
Starting Kick
Cooling Liquid-cooled
Radiator 2
Lubrication Premix 33 : 1
Ignition Electronic C.D.I., analogue type with variable advance
Spark plug type NGK BR 9EG / CHAMPION QN84
Spark plug gap 0.6 mm
Carburetor Mikuni TMX 38
Clutch Wet, multi-plate, mechanic control
Driving disc number 7
Driven disc number 6

Chassis
Type Steel single tube cradle with steel round tubes
Rear frame in light alloy
Front suspension MARZOCCHI USD telescopic hydraulic fork with advanced axle compression and rebound stroke adjustment
Fork leg diameter 50 mm
Fork travel 300 mm
Rear suspension SACHS Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment, compression and rebound adjustment (compression stroke - double adjustment)
Rear wheel travel 296 mm
Front brake 260 mm BREMBO fixed disc type with hydraulic control and floating caliper
Rear brake 240 mm BREMBO floating disc type with hydraulic control and floating caliper
Rim front 1.60" x 21", light alloy
Rim rear 2.15" x 19", light alloy
Tyre front 80/100-21" PIRELLI 51R-MT 32A
Tyre rear 100/90-19" PIRELLI NHS (57)-MT 32

Timing System
Valve timing - Exhaust 184°
- Transfer 128°

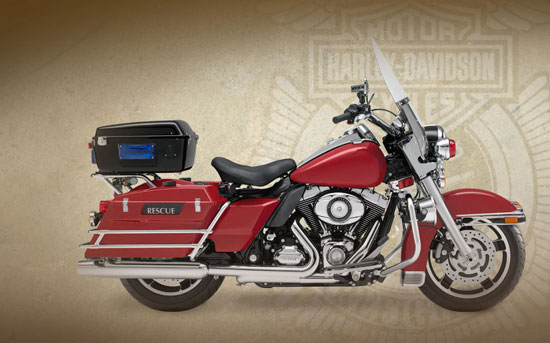

Harley Davidson Fire Rescue Road King, 2009

Harley Davidson Fire Rescue Road King, 2009

 U.S. UNITS

DIMENSIONS U.S. UNITS
Length 95.14 in.
Seat Height
Laden 1 27.3 in.
Unladen 30.7 in.
Ground Clearance 5.10 in.
Rake Steering Head/Trail 26° / 6.69 in.
Wheelbase 63.5 in.
Track Width N/A
Fuel Capacity 6.0 gal.
Oil Capacity 4.0 qt.
Weight
Dry Weight 791.0 lbs.
Running Order 828.0 lbs.
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™
Displacement 103.00 cu. in.
Bore x Stroke 3.88 in. x 4.38 in.
Engine Torque 3 102 ft lbs @ 2500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Miles per Gallon 5
ESPFI 54 hwy / 35 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 6
Front Black, Slotted Disc Cast Aluminum
Rear Black, Slotted Disc Cast Aluminum
Wheel Option N/A
Tire Size
Front D407F BW
Rear D407 BW

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, tachometer.
Indicator Lamps 7 High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Reverse Function N/A

CHASSIS
Brakes 32 mm 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, cross-over exhaust w/ dual mufflers and taper End Caps

METRIC UNITS

DIMENSIONS METRIC UNITS
Length 2416.56 mm
Seat Height
Laden 1 693.42 mm
Unladen 779.78 mm
Ground Clearance 129.54 mm
Rake Steering Head/Trail 26° / 169.93 mm
Wheelbase 1612.9 mm
Track Width N/A
Fuel Capacity 22.71 L
Oil Capacity 3.78 L
Weight
Dry Weight 358.79 kg
Running Order 375.57 kg
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™
Displacement 1688 cm³
Bore x Stroke 98.55 mm x 111.25 mm
Engine Torque 3 138.31 Nm @ 2500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Liters per 100 KM
ESPFI 4.36 hwy / 6.72 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 5
Front Black, Slotted Disc Cast Aluminum
Rear Black, Slotted Disc Cast Aluminum
Wheel Option N/A
Tire Size
Front D407F BW
Rear D407 BW

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, tachometer.
Indicator Lamps 6 High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Reverse Function N/A

CHASSIS
Brakes 32 mm 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, cross-over exhaust w/ dual mufflers and taper End Caps

Harley-Davidson Fire/Rescue Electra Glide, 2009



Harley-Davidson Fire/Rescue Electra Glide, 2009

Specifications

U.S. UNITS
DIMENSIONS U.S. UNITS
Length 95.14 in.
Seat Height
Laden 1 27.3 in.
Unladen 30.7 in.
Ground Clearance 5.10 in.
Rake Steering Head/Trail 26° / 6.69 in.
Wheelbase 63.5 in.
Track Width N/A
Fuel Capacity 6.0 gal.
Oil Capacity 4.0 qt.
Weight
Dry Weight 791.0 lbs.
Running Order 828.0 lbs.
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™
Displacement 103.00 cu. in.
Bore x Stroke 3.88 in. x 4.38 in.
Engine Torque 3 102 ft lbs @ 2500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Miles per Gallon 5
ESPFI 54 hwy / 35 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 6
Front Black, Slotted Disc Cast Aluminum
Rear Black, Slotted Disc Cast Aluminum
Wheel Option N/A
Tire Size
Front D407F BW
Rear D407 BW

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, tachometer.
Indicator Lamps 7 High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Reverse Function N/A

CHASSIS
Brakes 32 mm 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, cross-over exhaust w/ dual mufflers and taper End Caps

METRIC UNITS
DIMENSIONS

Length 2416.56 mm
Seat Height
Laden 1 693.42 mm
Unladen 779.78 mm
Ground Clearance 129.54 mm
Rake Steering Head/Trail 26° / 169.93 mm
Wheelbase 1612.9 mm
Track Width N/A
Fuel Capacity 22.71 L
Oil Capacity 3.78 L
Weight
Dry Weight 358.79 kg
Running Order 375.57 kg
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™
Displacement 1688 cm³
Bore x Stroke 98.55 mm x 111.25 mm
Engine Torque 3 138.31 Nm @ 2500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Liters per 100 KM
ESPFI 4.36 hwy / 6.72 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 5
Front Black, Slotted Disc Cast Aluminum
Rear Black, Slotted Disc Cast Aluminum
Wheel Option N/A
Tire Size
Front D407F BW
Rear D407 BW

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, tachometer.
Indicator Lamps 6 High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Reverse Function N/A

CHASSIS
Brakes 32 mm 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, cross-over exhaust w/ dual mufflers and taper End Caps

Can-Am Spyder RS Roadster, 2010











The Can-Am Spyder RS Roadster, 2010

There's nothing ordinary about the way it looks. Or the way it rides, for that matter. You gas, it comes to life.

You steer, it reacts and adapts. With its Rotax 990 V-Twin engine and unique, three-wheeled stance, the Can-Am™ Spyder roadster offers a bold, new way to experience open-road freedom. And it all starts at the end of your driveway.

A trip on the 2010 Can-Am Spyder RS roadster isn't just an escape, it's a full-on performance get-a-way.

Features and Specifications
= Rotax 990 V-Twin Engine
= 3-spoke aluminum wheels
= Multi-Function gauge display

Storage
= Mechanical reverse
= 44-Liter Front Storage - Lockable front storage with 44 liters of space. Can fit two helmets.
= 3-Spoke Aluminum Wheels - A unique, die-cast aluminum design that echoes the RS roadster's distinctive footprint.

Vehicle Stability System (VSS) - The Y-architecture enables the Spyder to host an innovative and unique stability system. Developed in conjunction with Bosch, the Vehicle Stability System (VSS) reduces the risk of losing control, integrated into Vehicle Stability System (VSS) and Stability Control system (SCS), Traction Control System (TCS) and Anti-lock Braking System (ABS) functions.

 TRANSMISSION
1. Manual 5-speed gearbox, true mechanical reverse (SM5).
2. Semi-automatic finger-trigger shifting (SE5).
