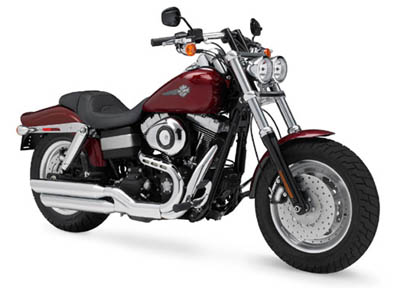

Harley-Davidson FXDF Dyna Fat Bob, 2009

Harley-Davidson FXDF Dyna Fat Bob, 2009

The massive stature of the Dyna Fat Bob, led by twin headlights braced between polished triple clamps, has an unmistakable street presence. Riding on big tires with an aggressive tread pattern mounted on 16-inch Slotted Cast Aluminum wheels, the Fat Bob is a cool and confident ride. New features include high performance chrome-covered coil-over rear shocks, and silver-faced speedometer with range countdown. The chrome Tommy Gun 2-1-2 exhaust accents the black-and-polished Twin Cam 96 engine. Forward foot controls and flat drag bars create a cool and comfortable ride.

The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s. These five motorcycles pair Big Twin performance with an extended FX front end. Dyna has always had a reputation for great handling, with loads of attitude that appeals to riders with a strong inclination for independent thinking.

A 1584 cc Twin Cam 96 powertrain with Electronic Sequential Port Fuel Injection (ESPFI) mated to the 6-Speed Cruise Drive transmission cranks out 92 ft.-lbs. of torque at 3000 rpm. Common Dyna characteristics include the under-seat battery box, exposed rear shock absorbers, and a classic Fat Bob fuel tank with console.

New on Dyna for 2009:
Silver-face speedometer with fuel range read-out: The new Dyna speedometer stands out in silver and adds a functional fuel range read-out.
New fuel sender: The speedometer range read-out is the result of a new fuel sender.
Low profile front fender: The gap between tire and fender tightens with the cool look of a new low-profile front fender.

FXDF Dyna Fat Bob features:
Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Black powdercoated engine with polished rocker boxes
New silver-faced speedometer with range countdown
New fuel sender
High Performance “Full metal jacket” chrome-covered shock absorbers
Chrome Tommy Gun exhaust with Staggered Dual mufflers
180 mm-16 rear / 130 mm-16 front tires
Cast Aluminum Slotted Disc 16-inch front/rear wheels
Bobtail rear fender
5.1-gallon Fat Bob fuel tank
Drag-style handlebar on black riser
Polished aluminum triple clamps
Black fork lowers and mirrors
28-degree fork angle
Dual headlamps
Forward or mid foot controls
Optional Smart Security System

The Dimensions
Length 91.73 in. (2329.94 mm)
Overall Width 35.03 in. (889.76 mm)
Overall Height 44.56 in. (1131.82 mm)
Seat Height:
• Laden2: 26.10 in. (662.94 mm)
• Unladen: 27.08 in. (687.83 mm)

The Ground Clearance 4.92 in. (124.99 mm)
Rake (steering head) 29°
Fork Angle 28°
Trail 4.92 in. (124.97 mm)
Wheelbase 63.77 in. (1619.76 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D427F 130/90B16
• Rear – D427 180/70B16

The Fuel Capacity 5 gal. (18.93 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain
Case Capacity11
1 qts. (0.95 L)
The Weight:
• As Shipped 669.70 lbs. (303.77 kg)
• In Running Order 703 lbs. (318.88 kg)
• Gross Vehicle Weight Rating 1085 lbs. (492.15 kg)
• Gross Axle Weight Rating:
• Front 390 lbs. (176.90 kg)
• Rear 695 lbs. (315.25 kg)

The Engine
Engine3 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System9 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump

The Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive10 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-Speed Cruise Drive
Gear Ratios (overall): U.S. HDI JPN
• 1st 9.312 9.312 9.030
• 2nd 6.421 6.421 6.266
• 3rd 4.774 4.774 4.630
• 4th 3.926 3.926 3.807
• 5th 3.279 3.279 3.179
• 6th 2.790 2.790 2.706

The Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Fully Covered, Coil-over shock

The Wheels4:
• Front- Silver, Solid Disc Cast Aluminum 16 in. x 3.50 in. (406.40 mm x 88.90 mm)
• Rear- Silver, Slotted Disc Cast Aluminum 16 in. x 5 in. (406.40 mm x 127 mm)

The Brakes:
• Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
• Rotor Type Patented, uniform expansion rotors (floating, front only)
(diameter x width):
• Front (dual floating) 11.80 in. x .20 in. (299.72 mm x 5.08 mm)
• Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)

The Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 3.10 in. (78.74 mm)

The Performance
Engine Torque5 (per SAE J1349):
• North America 92 ft. lbs. @ 3000 rpm (124.75 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
• Right 30°
• Left 31°

The Fuel Economy7
(EPA urban/highway test) 34/53 mpg (6.92/4.44 L/100 km)

The Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (dual quartz halogen) 55-watt low beam, 60-watt high bea
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps: High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system6 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard

Harley-Davidson FXD Dyna Super Glide, 2009

Harley-Davidson FXD Dyna Super Glide, 2009

The Super Glide offers Twin Cam 96 power under a solo seat, cradled in a nimble Dyna chassis. This most affordable example of the Big Twin breed is an inviting canvas for extreme and creative customization.
The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s. These five motorcycles pair Big Twin performance with an extended FX front end. Dyna has always had a reputation for great handling, with loads of attitude that appeals to riders with a strong inclination for independent thinking.
All Dyna models feature a new silver-face speedometer with fuel range read-out, a new low-profile front fender and a new fuel sender. A 1584 cc Twin Cam 96 powertrain with Electronic Sequential Port Fuel Injection (ESPFI) mated to the 6-Speed Cruise Drive transmission cranks out 92 ft.-lbs. of torque at 3000 rpm. Common Dyna characteristics include the under-seat battery box, exposed rear shock absorbers, and a classic Fat Bob fuel tank with console.

New on Dyna for 2009:
Silver-face speedometer with fuel range read-out: The new Dyna speedometer stands out in silver and adds a functional fuel range read-out.
New fuel sender: The speedometer range read-out is the result of a new fuel sender.
Low profile front fender: The gap between tire and fender tightens with the cool look of a new low-profile front fender.

FXD Dyna Super Glide features:
Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine and polished rocker boxes
New silver-faced speedometer with range countdown
New low profile front fender
New fuel sender
New tank graphics
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Silver 10-spoke Cast Aluminum wheels
Wrap-around rear fender
4.8-gallon Fat Bob fuel tank
Low-rise handlebar
29-degree fork angle
Handlebar-mounted speedometer
Solo seat
Mid-mount foot controls
Optional Smart Security System

The Dimensions
Length 92.80 in. (2357.12 mm)
Overall Width 36.70 in. (932.18 mm)
Overall Height 46.80 in. (1188.72 mm)
Seat Height:
• Laden2: 26.60 in. (675.64 mm)
• Unladen: 27.60 in. (701.04 mm)
Ground Clearance 5.32 in. (135.13 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.70 in. (119.38 mm)
Wheelbase 64.20 in. (1630.68 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D401F 100/90-19 57H
• Rear – K591 160/70B17 73V
Fuel Capacity 4.80 gal. (18.17 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain
Case Capacity11
1 qts. (0.95 L)
Weight:
• As Shipped 632 lbs. (286.67 kg)
• In Running Order 663 lbs. (300.73 kg)
• Gross Vehicle Weight Rating 1085 lbs. (492.15 kg)
• Gross Axle Weight Rating:
• Front 390 lbs. (176.90 kg)
• Rear 695 lbs. (315.25 kg)

The Engine
Engine3 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.750 in. x 4.380 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System9 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump

The Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive10 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-Speed Cruise Drive
Gear Ratios (overall): U.S. HDI JPN
• 1st 9.312 9.312 9.030
• 2nd 6.421 6.421 6.266
• 3rd 4.774 4.774 4.630
• 4th 3.926 3.926 3.807
• 5th 3.279 3.279 3.179
• 6th 2.790 2.790 2.706

The Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4: Silver, 10-Spoke Cast Aluminum
• Front 19 in. x 2.50 in. (482.60 mm x 63.50 mm)
• Rear 17 in. x 4.50 in. (431.80 mm x 114.30 mm)

The Brakes:
• Caliper Type- 4-piston fixed front, and 2-piston torque-free floating rear
• Rotor Type- Patented, uniform expansion rotors (floating, front only)
(diameter x width):
• Front (floating) 11.80 in. x .20 in. (299.72 mm x 5.08 mm)
• Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)

The Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 4.10 in. (104.14 mm)

The Performance
Engine Torque5 (per SAE J1349):
• North America 92 ft. lbs. @ 3000 rpm (124.75 NM @ 3000 rpm)

The Lean Angle (per SAE J1168):
• Right 32°
• Left 34°

Fuel Economy7
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

The Electric
Battery (per Battery CouncilInternational Rating)
Sealed, maintenance-free, 12V,19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps- High beam, directional light bar, neutral, low oil pressure, engine diagnostics,
turn signals, security system6 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard

Benelli Tornado Naked Tre 899 (TNT 899 Touring), 2009

Benelli Tornado Naked Tre 899 (TNT 899 Touring), 2009

Canada Specifications

ENGINE
TYPE 3 cylinders, 4 stroke, liquid cooled.
DOHC(double overhead camshaft)
CYLINDER CAPACITY 899 cc
BORE X STROKE 88 X 49.2
COMPRESSION RATIO 12, 5:1
MAXIMUM POWER 116 hp
MAXIMUM NET TORQUE / RPM 60ftlb
FIRING ORDER 1 > 3 > 2
INTAKE VALVE DIAMETER 33 mm
EXHAUST VALVE DIAMETER 29 mm
INTAKE ENGINE TIMING 21°BTDC42° ATDC
ENGINE TIMING 42°BTDC21° ATDC
MAXIMUM VALVE LIFT Int.8,75 exh.7.5
THROTTLE BODY,DIAMETER 53 mm
LUBRICATION SYSTEM Wet sump
Injection EURO 3
CLUTCH Wet clucth 10 discs
IGNITION Digital - inductive type via electronic engine management
STARTING Electric
GEARBOX 6 - speed
TRANSMISSION 525 chain type
PRIMARY RATIO 44 / 79
FINAL RATIO 16 / 41
GEAR RATIOS (SECONDARY) 1°14 / 39
2°18 / 35
3°21 / 32
4°23 / 30
5°24 / 28
6°25 / 27
CYCLE PARTS
FRAME ASD steel tube trellis, with boxed section
FRONT SUSPENSION "Upside down" fork Ø43 mm totally adjustable
FRONT TRAVEL 120 mm
REAR SUSPENSION ASD steel tube trellis swingarm
REAR TRAVEL 120 mm
RAKE 24°
TRAIL 95 mm
OFFSET 33 mm
FRONT BRAKE DIAMETER Ø320 mm with radial caliper
REAR BRAKE DIAMETER Ø240 mm
FRONT TYRE 120-70-/17; 120-65/17
REAR TYRE 180-55/17; 190-55/17; 200-50/17
SIZES
LENGHT 2100 mm
WIDTH 790 mm
HEIGHT 1050 mm
SEAT HEIGHT 780 mm
WHEELBASE 1443 mm
DRY WEIGHT 199 kg
FUEL TANK CAPACITY 17l
FUEL RESERVE 4l

Benelli Titanium 07, 2009

Benelli Titanium 07, 2009

Canada Specifications

ENGINE
TYPE 3 cylinders, 4 stroke, liquid cooled
DOHC(double overhead camshaft)
CYLINDER CAPACITY 1131 cc
BORE X STROKE 88 X 62
COMPRESSION RATIO 11, 9:1
MAXIMUM POWER 101 Kw @ 9.250
MAXIMUM NET TORQUE / RPM 117 Nm @ 6.750
FIRING ORDER 1 > 3 > 2
INTAKE VALVE DIAMETER 33 mm
EXHAUST VALVE DIAMETER 29 mm
INTAKE ENGINE TIMING 21°BTDC 42°ATDC
ENGINE TIMING 42°BTDC 21°ATDC
MAXIMUM VALVE LIFT Int.8,75 exh.8,75
THROTTLE BODY,DIAMETER Ø53 mm
LUBRICATION SYSTEM Wet sump
Injection EURO 2
CLUTCH Dry clutch with aluminium case
IGNITION Digital - inductive type via electronic engine management
STARTING Electronic
GEARBOX 6 - speed
TRANSMISSION chain - 525 chain type
PRIMARY RATIO 44 / 79
FINAL RATIO 16 / 36
GEAR RATIOS (SECONDARY) 14 / 39
18 / 35
21 / 32
23 / 30
24 / 28
25 / 27
CYCLE PARTS
FRAME ASD steel tube trellis, with boxed section
FRONT SUSPENSION "Upside down" fork totally adjustable Ø50 mm
FRONT TRAVEL 120 mm
REAR SUSPENSION ASD steel tube trellis swingarm with totally adjustable shock absorber
REAR TRAVEL 120 mm
RAKE 24°
TRAIL 95 mm
OFFSET 33 mm
FRONT BRAKE DIAMETER 320 mm with radial caliper
REAR BRAKE DIAMETER 240 mm
FRONT TYRE 120-70-17; 120-65/17
REAR TYRE 180-55/17; 190-55/17; 200-50/17
SIZES
LENGHT 2100 mm
WIDTH 790 mm
HEIGHT 1050 mm
SEAT HEIGHT 780 mm
WHEELBASE 1443mm
DRY WEIGHT 195kg
FUEL TANK CAPACITY Lt. 17
FUEL RESERVE Lt. 4

Benelli BX570 Motard, 2009

 Benelli BX570 Motard, 2009

Canada Specifications
ENGINE
TYPE Single cylinder, 4 stroke, liquid cooled, 4 titanium, double overhead camshaft, with balancer shaft
DISPLACEMENT 569 cc
BORE x STROKE 104 x 67 mm
COMPRESSION RATIO 12,5:1
RATED OUTPUT n.d.
MAX. TORQUE n.d.
FUEL SUPPLY Electronic injection with throttle body ø48 mm
EXHAUST SYSTEM With catalytic converter and oxigen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio n.d.
CHASSIS
FRAME Single tube cradle with forged, casted and extruded elements and carbon structural part patented. Light alloy rear subframe
FRONT SUSPENSION ø50 mm upside-down fork, with hydraulic extension and compression adjustments
FRONT SUSPENSION STROKE 272,5 mm
REAR SUSPENSION Aluminum casted swingarm, progressive rear dumper completely adjustable in extension, compression and spring preload
REAR SUSPENSION STROKE n.d.
FRONT BRAKE Single floating disk ø320 mm with 4 pistons radial caliper
REAR BRAKE Single disk ø220 mm with single piston floating caliper
FRONT RIM 3,5”x17”
REAR RIM 4.25”x17”
FRONT TYRE 120/70 R17
REAR TYRE 150/60 R17
SIZES
LENGHT n.d.
WIDHT EXCLUDING MIRRORS n.d.
HEIGHT EXCLUDING MIRRORS n.d.
SEAT HEIGHT n.d.
WHEELBASE n.d.
UNLADEN WEIGHT* n.d.
ROAD READY WEIGHT** n.d.
PERMITTED TOTAL WEIGHT n.d.
USABLE TANK VOLUME 8,5 lt
RESERVE n.d.

Can-Am Spyder RT Roadster, 2010

Can-Am Spyder RT Roadster, 2010

 The Can-Am Spyder RT Roadster. Riding Reinvented.
With a host of standard features, the Can-Am Spyder RT roadster delivers enough comfort and convenience for long, extended escapes - because true freedom is never having to stop.

 Features and Specifications
155 liters of cargo space
Multi-finction gauge cluster
Electric windshield
Ultra comfort touring saddle
Roadster Electronic Command Center (RECC)

Ultra Comfort Touring Saddle - Premium saddle featuring passenger backrest and driver lumbar support for maximum comfort.

Rotax 991 V-Twin Engine - At the core of the 2010 Can-Am Spyder RT roadster is the Rotax 991 V-Twin engine, featuring electronic throttle control specifically calibrated for touring.

Vehicle Stability System (VSS) - The Y-architecture enables the Spyder to host an innovative and unique stability system. Developed in conjunction with Bosch, the Vehicle Stability System (VSS) reduces the risk of losing control, integrated into Vehicle Stability System (VSS) and Stability Control system (SCS), Traction Control System (TCS) and Anti-lock Braking System (ABS) functions.

TRANSMISSION

Can-Am Spyder RT Roadster Gear box
MANUAL TRANSMISSION (SM5)

Can-Am Spyder RT Audio and Convenience Roadster Gear box
MANUAL TRANSMISSION (SM5)
SEMI-AUTOMATIC TRANSMISSION (SE5)

Can-Am Spyder RT-S Roadster Gear box
MANUAL TRANSMISSION (SM5)
SEMI-AUTOMATIC TRANSMISSION (SE5)

There is more than one way to shift
MANUAL TRANSMISSION (SM5) Fluid motion stems from the smooth 5-speed gearbox created specifically for the Can-Am Spyder RT roadster. It also features a true mechanical reverse.

SEMI-AUTOMATIC TRANSMISSION (SE5) With the Can-Am Spyder RT roadster’s optional semi-automatic 5-speed transmission with reverse, there’s no shifting with your foot. No clutching with your hand. Simply apply pressure with your left thumb to shift up, and use your forefinger to downshift. There’s more than one way to shift. It’s easy: thumb shifts up, index finger downshifts.

Can-Am Spyder Roadster SE5, 2009

Can-Am Spyder Roadster SE5, 2009

Can-Am Spyder Roadster SE5: Sequential electronic five-speed (SE5) transmission

The new SE5 (Sequential Electronic Five-Speed), Semi-Automatic Transmission-equipped BRP Can-Am Spyder Roadster SE5s have started being shipped to consumers. Those that wanted the ease of use and freedom will soon receive an early holiday gift, as most have been waiting months for the state-of-the art transmission option.

The SE5 is an electronically controlled mechanical transmission that uses a simple thumb and index finger shifter which will make shifting more precise than a conventional manual clutch. This creates a smooth and seamless shift for both up and down shifting. No more clutching with your hand and shifting with your foot, all it takes is a simple push of the shifter button to go to your desired destination.

Detailed Product Information:
If you are not familiar with BRP (Bombardier Recreational Products), it is the powersport company that produces Sea-Doo watercrafts, Ski-Doo snowmobiles and, Can-Am ATVs. With its new addition, BRP has products for the water, the snow, the dirt and now the open road!

While initially concepting an on-road vehicle more than five years ago, BRP wanted to stay strong to its core value and innovative spirit by designing a paradigm-shifting vehicle. The result is the Spyder – a roadster that makes a true statement and is like nothing anyone has seen before – with a Y-architecture providing unique proportions blended with flowing-edge design.

The Spyder has state-of-the-art power and technology, including a Rotax 990 V-Twin engine featuring dual-overhead cams and four valves per cylinder. This same 106 horsepower engine is found in a number of reputable motorcycles. It will be available with two transmission options, a sequential manual five-speed (SM5) and sequential electronic five-speed (SE5) transmission, both of which include a transmission-based reverse.

The semi-automatic option is an electronically controlled mechanical transmission that uses a simple thumb shifter on the ergonomic handle. This creates a smooth and seamless shift for both up and down shifting. Plus, its intelligent technology automatically downshifts making coming to a stop effortless and worry free. This option will be available to the public later this summer or early fall.

The skeleton of the Can-Am Spyder is built around a Surrounding Spar Technology (SST™) frame, featuring a minimalist steel center beam, surrounding the engine. It minimizes weld points for greater structural integrity. This light and slim frame provides a low center of gravity to enhance stability and handling.

The nervous system of the Can-Am Spyder senses its surroundings utilizing multiple on-board Electronic Control Units (ECUs). These sophisticated systems monitor a broad range of functions, from wheel slippage to digitally encoded security information.

The Can-Am Spyder features a Dynamic Power Steering (DPS) and a Vehicle Stability System (VSS) engineered in conjunction with Bosch, which features anti-lock brakes, traction control and stability control.

SPECIFICATIONS: 2009 Can-Am Spyder Roadster SE5

Engine
Manufacturer................................BRP-Rotax
Type..............................................990 V-Twin
Displacement...............................60.90 in3 (998cc)
Bore..............................................3.82 in (97 mm)
Stroke...........................................2.68 in (68 mm)
Cylinder........................................2
Valves per cylinder.......................DOHC 4
Max output...................................106 hp @ 8500 rpm (79 kW @ 8500 rpm)
Max torque...................................77 lb-ft @ 6250 rpm (104.3 Nm @ 6250 rpm)
Compression ratio........................10.8:1
Ignition type.................................Electronic ignition with dual output coil
Lubrication....................................5W40 BRP synthetic oil
Exhaust system.............................2-into-1 with catalytic converter
Cooling.........................................Liquid cooled
Injection........................................Multi-point EFI with 57 mm diameter throttle bodies

Drive Train
Gear box......................................Sequential Electronic 5-Speed (SE5) with transmission-based reverse
Final drive.....................................28/79 ratio final drive with Carbon-reinforced drive belt
Clutch...........................................Wet, multi-plate, manual or electronic operation through a hydraulic piston

Electric Equipment
Magneto.......................................500 Watt
Starter...........................................Electric
Battery..........................................Dry Cell, 12V, 21 Amp

Geometry
Front suspension..........................Double A-Arm with anti-roll bar
Front suspension travel................5.67 in (144 mm) with adjustable cam
Rear suspension...........................Swing-arm with monoshock
Rear suspension travel.................5.71 in (145 mm) with adjustable cam
Chassis type.................................SST Spyder (Surrounding Spar Technology)
Steering........................................DPS (Dynamic Power Steering)

Tires & Wheels
Front tire.......................................KR21 165/65R14
Front nominal pressure................13-17 psi (89-117 kPa)
Rear tire........................................KR21 225/50R15
Rear nominal pressure..................26-30 psi (179-207 kPa)
Wheel size, front...........................Aluminum 14x5 (355x127)
Wheel size, rear............................Aluminum 15x7 (381x178)

Brakes
Type..........................................Foot-actuated, fully integrated hydraulic 3-wheel braking system
Front braking system................4 piston calipers with 10.2 in x 0.25 in (260 mm x 6 mm) discs
Rear braking system.................Single-piston caliper with 10.2 in x 0.25 in (260 mm x 6 mm) disc
EBD..........................................Electronic Brake Distribution
ABS...........................................Anti-lock Braking System
Parking brake...........................Mechanical, foot actuated to the rear caliper

Safety & Security
VSS...........................................Vehicle Stability System
ABS...........................................Anti-lock Braking System
TCS...........................................Traction Control System
SCS...........................................Stability Control System with Roll-Over Mitigation
DPS...........................................Dynamic Power Steering
DESS.........................................Digitally Encoded Security System

Vehicle Dimensions & Weights
Dry vehicle weight....................697 lbs (316 kg)
Front storage capacity.............2,685 in3 (44 l)
Front max load capacity...........30 lbs (15.9 kg)
Total vehicle load allowed........440 lbs (200 kg)
Fuel capacity............................6.6 US gal (25 l)
Oil capacity..............................1.19 US gal (4.5 l)
Coolant capacity......................0.85 US gal (3.2 l)
GVWR.......................................1,188 lbs (540 kg)
Ground clearance.....................4.5 in (115 mm)
Vehicle overall height...............45.1 in (1,145 mm)
Vehicle overall length...............105 in (2,667 mm)
Vehicle overall width................59.3 in (1,506 mm)
Seat (top) height.......................29 in (737 mm)
Wheel base..............................68 in (1,727 mm)
Wheel track, front.....................51.5 in (1,308 mm)
Type of gas...............................Unleaded, 87 octane minimum

Buell 1125CR, 2010

Buell 1125CR, 2010



BUELL CONTINUES TO PUSH SPORTBIKE RIDING LIMITS

New Lightning CityX XB12SX brings more power to the streets

The Buell riding experience embodies radical designs and intuitive performance that rewards uncompromising riders, EAST TROY, Wis. (July 25, 2009).
From the race track to the back road, a Buell motorcycle will take any path necessary to put its rider out front because Buell believes a deep bond between rider and machine is the essence of motorcycling.

Buell maintains its defiant stance in 2010 with a versatile line-up of motorcycles designed to inspire riders to achieve ultimate performance. For the street, the 1125CR™ café racer with new upright handlebars, and the extended XB Lightning line-up for Europe – including the new Lightning CityX XB12SX motorcycle – are now packing more style and power than ever. In the sportbike category, in a nod to Buell’s increasing victories and success on track, riders will see even more of Buell’s convention-breaking liquid-cooled 1125R™. For adventures that go way beyond the road, the Ulysses XB12 range sees various upgrades make it the most exhilarating ride yet.

Out in the Street
For those looking for a bike with agile handling, as well as serious torque and acceleration for real urban power, MY10 sees the introduction of the new Lightning CityX XB12SX. Receiving its debut in Europe, the XB12SX marries the sheer power of the Thunderstorm™ 1203cc V-Twin engine with Buell’s popular Lightning CityX XB9SX chassis and suspension, inspired by the needs of today’s urban rider. Delivering a whopping 104 Nm/ 77 ft lbs of torque, the bike is available in Valencia Orange Translucent & Hero Blue Translucent, both with black wheels.

Meanwhile the Lightning CityX XB9SX, is readier than ever for a street fight, with the broad, smooth power of its Thunderstorm™ 984 V-Twin engine, wind deflectors, frame pucks, headlight grille, airbox cover X-guard and new Designer Black wheels. Features such as the upright rider position, wide Supermoto style handle bars and intuitive handling help the Lightning CityX XB9SX and XB12SX dodge through back streets and effortlessly pull away from the traffic – enabling the ultimate urban riding experience.

Buell XB Lightning streetfighters, powered by an air/oil/fan-cooled Thunderstorm V-Twin engine, have a ferocious look with new airbox cover graphics added to blacked-out frame, forks, engine and other components. Lightning XB models receive new oxygen sensor with updated calibration, fuel pump and sensor, front brake piston seal and LED taillight, and front and rear turn signals. The XB12Ss with supermoto-inspired long suspension has size, comfort and convenience, and the Lightning XB12Scg road-hugging suspension for a low centre of gravity.

As a modern café racer, the Buell 1125CR motorcycle is powered by a 146-hp, liquid-cooled Helicon 1125 V-Twin engine with Buell Intuitive Response Chassis (IRC), new upright tapered aluminium streetfighter handlebar, and new graphics to deliver top sportbike handling in style. Final-drive gearing optimises acceleration and performance, along with new water pump bearing, front brake piston seals and rear wheel bearings and axle. The 1125CR will be available in Arctic White, Midnight Black or new Racing Red bodywork.

Taking it to the Track
Whether on the street or the track, Buell sportbikes are engineered for high levels of performance and handling – providing a ride no less exhilarating than a bike built specifically for racing. This is perfectly illustrated by the Buell 1125R. European sport performance riders will see more of this convention-breaking, large capacity sport motorcycle in 2010. With its 72 degree liquid-cooled V-Twin 1125cc BRP-Rotax engine – exclusively designed to Buell specifications; all-new Buell IRC (Intuitive Response Chassis) - the stiffest chassis ever offered by Buell; Quiet Zone™ aerodynamics; and fully-adjustable Showa piggyback suspension, the 1125R motorcycle offers power, torque, handling and agility that takes its owner to a new level of riding experience. Available in Arctic White, Racing Red or Midnight Black bodywork and with distinctive styling that leaves many of its mechanical components exposed, the bike has a uniquely aggressive look. This is further enhanced by an athletic riding position allowing for unparalleled comfort whilst in pursuit of superior street or track performance.

On and off road
The sport-touring Buell Ulysses XB12XT and the versatile, all-road Ulysses XB12X are equally exhilarating rides in the Buell Adventure Sportbike category. Both Ulysses models feature a new right-side air scoop, fan shroud, header shield, and ECM calibration that work together to reduce heat and improve rider comfort.

Light and agile on any kind of road, the Ulysses XB12X is equipped with a broad, usable Thunderstorm 1203cc V-Twin engine, rugged protective features like frame pucks, headlight grille and wind deflectors. The XB12X has a new blacked out Phantom Metallic frame, swingarm, and footrest supports, and triple clamps, as well as new Sunfire Yellow bodywork and smoked windscreen. The Ulysses XB12XT is ready to carve the continents on new Pirelli Angel ST tyres with side and top cases, heated grips and a tall windscreen. Both Ulysses models feature the patented Triple Tail system that adjusts between three functional positions.

Key Features
The Buell 1125CR blends class-leading performance with sinister styling and a wicked attitude to push the boundaries of the streetfighter category.

= Buell Helicon 1125cc liquid-cooled fourstroke, 72-degree V-Twin engine with DDFI 3 Electronic Fuel Injection ECM
= Compact oblique stacked six-speed transmission configuration
= Ram-air pressurized air box
= Goodyear Hibrex final drive belt with Flexten Plus technology with a constant-tension pulley for smoother on/off throttle transitions
= Underslung muffler with Helmholtz chamber
= Twin side-mount radiators with outer covers designed to absorb impact
= HVA (Hydraulic Vacuum Assist) clutch with slipper action
= 6-spoke, cast aluminum wheels
= Pirelli Diablo Corsa III tires
= Steel braided brake lines
= Fully adjustable 47 mm Showa inverted fork
= Fully adjustable Showa rear shock absorber
= Fuel-in Frame Intuitive Response Chassis
= Rigid cast-aluminum swingarm
= Adjustable hand and foot controls

Electrical1
Battery Type and Specifications Sealed Lead Acid, maintenance-free, 12-volt, 12 amp-hour (per Battery Council International rating), 200 cca.
Charging System Specifications 37-amp, permanent magnet, three-phase alternator with solid-state regulator (520W peak power)
Starter System Specifications Starter motor 900W, starter drive (gears) and one way clutch.
Headlamp Type and Wattages (high, low and position lamp) Three-bulb headlamp with daylight running mode. 55 watt low beam (one (H7) 55 watt bulb), 110 watt high beam (one additional (H7) 55 watt bulb), 5 watt position lamp
Tail Light Wattages (stop and running) .55W for tail light, 5W for stop light
Turn Signal Lights Type (manual or self-canceling) and Wattage Manual cancelling, Front = non-serviceable LED's. 3W (per side), Rear = replaceable bulbs, 10W (per side).
License Plate Lamp Wattage 5W
