Ducati 848

Ducati 848

So light, so powerful
The new Ducati 848 Nicky Hayden Edition enjoys all the performance advancements of the entire Superbike family, while adding its own innovations to redefine the middleweight sport bike class.

The highly advanced 848 engine uses an improved method of engine case production in which cases are vacuum die-cast formed. While providing significant weight savings of more than 3kg (6.5lbs), this method also ensures consistent wall thickness and increased strength. Further refinements include a sophisticated wet clutch that offers 1kg (2.2lbs) less weight, a much higher service life, improved clutch feel and quiet operation.

With the first twist of the wrist, the powerful rush of the Testastretta Evoluzione engine confirms that the rules have changed. The 848’s 134hp is not only 30% more powerful than its predecessor, but it provides a power-to-weight ratio even better than the potent 999.

Features in addition to the special Hayden livery and full specifications:

- LED dash illumination for better visibility – particularly at night

- Inclusion of a 30mm mirror extension kit, enabling a choice of two stem lengths for better vision

- Aluminium cam belt tensioner pulleys to reduce weight and moving mass; in turn enabling better acceleration.

The Engine

The 848 Testastretta Evoluzione engine becomes the benchmark for the middleweight sportsbike category, benefitting from all the experience accumulated with the larger engine on the 1198. It successfully adopts the same design guidelines and the same compact cylinder and cylinder head layout, but introduces for the first time ever an innovative solution for the crankcase, which has been designed with a further weight reduction for this advanced engine in mind. The overall layout of this engine integrates a series of avant-guard solutions, confirming the close links with the experience of Ducati’s racing department.

The 849cc engine has bore and stroke values of 94mm and 61.2mm respectively, which produce a ratio that is only slightly inferior to the 1098 (1.54 compared with 1.61), while maintaining the highly ‘over-square’ layout typical of racing engines.

Power output is an impressive 134hp (98.5kW) at 10,000 rpm and maximum torque is 71 lb/ft (96Nm) at 8250 rpm. The power and torque values confirm the high performance level of this engine, especially when compared to its predecessor, the Testastretta-engined 749.

The cylinder head has been modified in line with the characteristic bore and stroke of the engine in order to optimize the fluid dynamics of the intake (straight and plunging) and exhaust ducts and combustion chamber. The compression ratio is 12:1.

The valve angle is the same as the 1198 engine and diameter is 39.5mm for the inlet valve and 32mm for the exhaust. The technology used sees the application of a bi-metallic alloy that combines increased lightness with resistance and reliability required for these particular components. The desmodromic control system has also been designed with the weight and the inertia of the new components in mind, allowing extremely efficient valve lift during intake and exhaust phases. The excellent results achieved are confirmed by the engine’s power figures, producing outstanding performance thanks also to the use of MotoGP-derived elliptical throttle bodies, which have been fitted to the 1198 engine. The 2010 model year sees the addition of new lightweight cam belt tensioner pulleys; improving performance while shaving weight.

The design of a dedicated elliptical throttle body for the 848 demonstrates the attention that Borgo Panigale engineers have devoted to the development of the Superbike range. The cross-section is reduced from the 60 sq. mm of the 1098 to 56 sq. mm so as to optimize fluid dynamics at every engine speed. Just like on the 1098, the new cylinder heads benefit from fewer components and include magnesium covers.

This Testastretta Evoluzione engine sees the introduction of a special technology for the construction of the engine crankcase: Vacural casting. This is a forced vacuum die casting method that allows jet characteristics to be improved thanks to the absence of porosity, gas inclusion and oxidation. This allows extremely high measurement precision and greater ductility for aluminium alloy. Designers have been able to harness the benefits of this innovative process by redefining the shape and the wall thickness of the new crankcase by means of FEA (Finite Element Analysis) checks, which allowed the required reliability standards to be achieved, while simultaneously obtaining a significant weight saving of 3.5kg.

The 848 engine is fitted with a silent modular wet clutch, characterized by an exceptional resistance to wear that will lead to superior duration. This solution makes a useful contribution to weight saving, estimated to be around 1.6kg, which is also due to the use of a different type of clutch cover.

The high power figures achieved by this engine also come from the use of the same type of oil cooler and coolant radiator as the 1198’s engine, with an increased surface area assisted by lightweight, high flow electric fan assemblies.

The 848’s exhaust system follows the same layout and uses the same innovative technology as the 1198. The system terminates with Ducati’s trademark twin under-seat silencers, delivering the unmistakable signature sound of the big bore 90° L-Twin.

This power unit, just like all the other Ducati engines, has been designed to comply with Euro 3 exhaust emission norms.

Chassis

Trellis frame
Developed in cooperation with Ducati Corse, the 848 Trellis frame has a simplified tube layout featuring main section tubes increased in diameter from 28mm to 34mm, while being reduced in thickness from 2mm to 1.5mm. The result is a 14% increase in rigidity and a weight saving of 1.5kg (3.3lbs).

Single-sided swingarm
The 848, as all the Superbike family, is equipped with a unique single-sided swingarm. The engineers were encouraged to re-think the construction technique of this element. The solution was to produce the main operational components using individual aluminium castings so as to ensure strength around the pivot points, wheel hub and suspension links, with fabricated aluminium sections used to complete the construction into a single, beautifully engineered component.

Rear suspension
Highlighting the way in which individual components are influenced by each other, the new lightweight Trellis frame and single-sided swingarm have enabled a more compact and further weight-saving rear suspension linkage system to be used featuring separate lower pick-up points for the push-rod and suspension unit. This ‘tandem’ design effectively reduces stress around the linkage pick-up area of the Trellis frame. Working together with this highly efficient linkage is a fully adjustable Showa single shock for the 848, the same as the 1198.

Front suspension
At the front the 848 is equipped with fully adjustable 43mm Showa forks with radial mounts. This type of front suspension is professionally track-tuned and offers superior road holding, delivers superior feedback, and helps every rider to be more confident and in control.

Brembo Monobloc calipers
The 848 brake system is characterized by M4 calipers using four 32mm pistons and two radial mounted pads. Matched to the calipers are two 320mm discs and the combination of these elements achieves spectacular braking power.

Super lightweight wheels
The 848 also benefits from lightweight Marchesini Y-shaped spoke wheels. The weight saving of 250gr achieved on the front wheel substantially reduces the moment of inertia and enhances the 848’s change of direction and braking performance. The rear wheel is just as impressive with a complete redesign for its single-sided swingarm application that has resulted in a reduction of over 1kg compared with traditional Ducati single-sided swingarm fitments. Finally a 5.50” wheel fitted with a 180/55 tyre guarantees the maximum agility at the rear.

Electronics
Desmosedici-style digital instrumentation is taken from Ducati’s MotoGP GP9 project; and for 2010 now features LED backlighting for better visibility. This pure racing, minimalist solution has no switches or buttons to compromise its clean lines. Instead, information additional to the default read-outs is managed by handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus. The default read-out presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Optionally, the rpm and speed can be displayed in numeric values. The instrument display also doubles as a control panel for the activation of the data acquisition system as well as listing lap times recorded by using the high-beam flash button as a stopwatch.

With the purchase of the Ducati Data Analyser (DDA), which includes PC software, a USB-ready data retrieval card and instructions, owners are ready to review and analyse the performance of the bike and its rider, and make comparisons between various channels of information. The DDA is available from Ducati Performance.

Normally used on race bikes only, the system records numerous channels of data including throttle opening, vehicle speed, engine rpm, engine temperature, distance travelled, laps and lap times. The system also automatically calculates engine rpm and vehicle speed data so as to also display gear selection as an additional channel of information. At the end of a ride or track session, up to 2mb (approximately 3.5 hours) of data can be downloaded to your PC ready to compare, analyse and get an inside view of you and your 848’s performance.

Instrumentation
Digital Dashboard that displays derivation MotoGP: speedometer, tachometer, lap time on the stopwatch, clock, air temperature, water temperature, battery voltage, odometer, trip odometer fuel, preventive maintenance indicator. Spies segnalatiche: neutral arrows. projector beam, limiter, oil pressure, fuel level. Other Features: immobilizer, integrated DDA.

Honda FourTrax Rincon TRX680FA

Honda FourTrax Rincon TRX680FA

A powerful 675cc engine, independent rear suspension, electronic fuel injection, Hondamatic automatic transmission, four-wheel disc brakes and an integrated GPScape navigation system all work together to place the FourTrax Rincon far and away above all competitors.

Features & Benefits

- New Blue color joins Red, Olive and Natural Gear™ Camouflage on the TRX680FA.

Unique Features :

- Exclusive Natural Gear Camouflage color scheme offers a pattern that's soft, open and shadow-free for superior camouflage performance in a wide variety of conditions.

- Honda's liquid-cooled four-stroke ATV features a single-cylinder, fuel-injected 675cc OHV engine that provides ample torque and dependable power.

- Honda's automotive-style automatic ATV transmission draws power through a hydraulic torque converter to drive three forward gears and Reverse.

- The FourTrax Rincon features Honda's fully independent ATV rear suspension for comfortable cruising over the toughest terrain.

- Extensive weight-saving measures include the use of aluminum for the following components: forged front upper control arms, rear upper and lower control arms, rear knuckles, front and rear wheels.


Engine/Drivetrain

- Integrated GPScape (see Technology Section)

- High-capacity liquid cooling provides consistent engine operating temperature in extreme conditions for maximum power output and long engine life.

- Camshaft is located adjacent to the cylinder head, reducing engine height. Together with the semi-dry sump, engine height is further reduced for a low center of gravity and excellent handling.

- Advanced design Longitudinally Mounted Engine (see Technology Section)

- Four-valve cylinder head with two short pushrods provides a broad powerband for optimum performance and engine efficiency.

- Programmed Fuel Injection (PGM-FI) (see Technology Section)

- Reliable cold-weather starting.

- Engine design produces low emissions and meets California Air Resources Board (CARB) off-road emissions standards.

- Stainless steel exhaust system provides superior corrosion resistance and minimizes noise levels.

- Unique semi-dry-sump oiling system locates the oil tank inside the engine cases, lowering engine height and allowing optimum engine placement for excellent ground clearance and superb handling.

- Standard high-flow oil cooler ensures optimal engine lubrication under difficult operating conditions.

- TraxLok selectable 2WD/4WD system (see Technology Section)

- Torque-Sensitive Front Differential (see Technology Section)

- The rear driveshaft joins the rear final-drive gearcase at a 77° angle, eliminating the weight and complexity of an additional shaft and joints. The design also contributes to the Rincon's considerable 8.0 inches of rear wheel travel.

- USDA-qualified spark arrester/muffler.


Hondamatic Automatic Transmission

- The automotive-style Honda automatic transmission features a hydraulic torque converter, three hydraulic clutches and an Electronic Control Module Unit (ECM) to automatically select one of three forward gears and one reverse gear. The ECM monitors throttle opening, vehicle speed, engine rpm, gear selector position, brake application and engine oil temperature.

- The Honda automatic transmission shifts electronically-eliminating unsightly and trouble-prone vacuum lines-and features engine braking, unlike conventional belt-drive designs.

- Features a filtration system to protect against external contamination. The compact and maintenance-free design means there are no belts to wear out and replace. Using multi-filtered engine oil as hydraulic fluid, the design also simplifies maintenance and ensures an adequate oil supply in all operating conditions.

- Electric Shift Program (ESP™) (see Technology Section)

- A handlebar-mounted control switches the automatic transmission between ESP mode and automatic operation.

- A convenient column-style shift lever permits the rider to easily select Drive, Neutral or Reverse.


Chassis/Suspension

- A rugged steel perimeter frame and four-wheel independent suspension provide an exceptional 10.0 inches of ground clearance.

- Independent double-wishbone front suspension uses premium shock absorbers to provide 6.9 inches of suspension travel for a plush, comfortable ride.

- Honda's independent rear suspension uses a double-wishbone design and features forged-aluminum knuckles and upper/lower A-arms to substantially reduce unsprung weight. The rear knuckle pivots use lightweight metal bushings in place of conventional ball joints and radius arms, eliminating geometry variations as the rear suspension travels through its stroke. This simple design maintains rear wheel alignment and further reduces unsprung weight, contributing to responsive overall handling.

- Lightweight single-tube gas-charged rear shocks and an anti-sway bar provide plush, well-controlled damping throughout the Rincon's exceptional 8.0 inches of wheel travel.

- Dual front disc brake calipers feature a patented built-in scraper system that removes mud and snow from inside the front wheel. This helps prevent the buildup of debris between caliper and rim, ensuring consistent braking performance.

- A rear, center hydraulic disc brake and self-adjusting mechanical rear parking brake are mounted on the rear driveshaft, further reducing unsprung weight and contributing to the Rincon's considerable ground clearance.

Additional Features

- Multi-function LCD digital instrumentation is compact, tough and waterproof, featuring large readouts for gear-selector position, speedometer, odometer, resettable tripmeter and hourmeter/clock. Instrument housing includes LEDs for Drive, Neutral, Reverse, temperature warning and FI warning indicator. A fuel gauge located within the instrument housing comes as standard equipment.

- Waterproof accessory socket provides 12-volt, 10-amp power with a built-in temperature- type fuse.

- Thickly padded seat uses dual-density foam to provide all-day riding comfort.

- Low-fuel warning light.

- Side-opening compartment has 4 liters of storage capacity and can be opened when the rider is seated.

- Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.

Kawasaki Brute Force

Kawasaki Brute Force 750 4x4i

The Brute Force 750 4x4i combines sport riding performance, utility capability, and the fit and finish one would expect from a flagship model–all built on an independent suspension chassis.

The perfect union of fuel injected, big-bore power and 4x4 ATV capability

The leader of Kawasaki’s V-twin powered, sport-utility all-terrain vehicle (ATV) pack, the Brute Force® 750 4x4i retains its top status for 2009 by mating a hard-charging digital fuel injected V-twin engine to the plush ride supplied by its competent front and rear fully independent suspension and superb four-wheel drive system. Wrapped in aggressive bodywork, it’s the perfect choice for adventure enthusiasts and sportsmen alike.

The Brute Force 750 4x4i is driven by a powerful 90-degree, four-stroke, fuel injected V-twin engine. The 749cc, twin Electrofusion-plated aluminum cylinders are fed via 36mm throttle bodies controlled by a 32-bit CPU, which delivers the correct mixture based on coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle. Its high-pressure fuel pump is located inside the tank and has a unique reservoir chamber at the bottom to help ensure air does not get into the fuel system.

A Brute Force 750 4x4i gets the power from its V-twin engine to the wheels through a continuously variable transmission (CVT) with low or high range, and reverse. The rider is able to select two- or four-wheel-drive operation simply by pressing a button on the handlebar. In four-wheel-drive mode, the Brute Force ATV utilizes a limited-slip front differential, which eases steering effort under most riding conditions. The rider can also engage the handlebar mounted Variable Front Differential Control lever to manage torque delivery to the right and left front wheels for maximum traction.

The front drive shafts of the Brute Force feature Cardan joints –an industry first. Similar to U-joints, Cardan joints help absorb torque fluctuations to the drive shaft, and the lightweight design helps to reduce vibration. The small and compact rear final gear case and sealed rear braking system were designed in conjunction with the IRS and are extremely rugged and efficient.

The dual front discs and Kawasaki’s highly acclaimed sealed rear braking system bring the Brute Force 750 4x4i to a quick halt. Completely sealed, the rear braking system’s components are protected from mud, dust and debris. Its compact size also provides more ground clearance than a conventional rear disc brake system. Enhancing the highly effective braking is the engine’s Kawasaki Engine Brake Control, which helps slow the ATV under certain conditions.

Ride comfort on the Brute Force 750 4x4i doesn’t come at the expense of sport performance. Dual-rate springs for the front and rear suspension permit the best of both worlds. A soft initial spring rate for the bumps at slower speeds and a firmer second rate to handle higher speeds comes into play as the springs are further compressed. Complimenting the suspension, the urethane foam in the seat is firm enough to be supportive yet provide plenty of comfort for long hours in the saddle.

The Brute Force 750 4x4i utilizes a simple, yet sturdy double-cradle tubular steel frame with front dual A-arms and IRS. The front dual A-arms feature adjustable shocks with 6.7 inches of travel, while the IRS employs a leading torsion bar and provides 7.9 inches of travel. A combination of needle bearings and ball joints in the lower rear A-arms gives the IRS unrivaled suspension action, stability and excellent rider comfort.

As if performance wasn’t enough, the Brute Force 750 4x4i can turn heads with looks alone with its polished 12-inch wheels. Clad in aggressive tires, the eye-catching wheels help give the ATV its 9.7 inches of ground clearance and transfer the awesome power of the V-twin engine to the ground.

The 750 4x4i’s front bumper is designed for easily manhandling the Brute Force when the need arises. Behind the bumper is the strong and tough angular bodywork constructed of high-gloss and scratch-resistant Thermo-Plastic Olefin (TPO). Underneath this bodywork is a factory-installed plastic conduit for easy winch installation.

The chassis balance is further optimized by the large five-gallon fuel tank beneath the seat. Keeping the weight in check are aluminum footpegs on the full-sized floorboards and lightweight cargo racks that can carry a combined weight of 264 pounds. The capable Brute Force can also tow 1,250 pounds.

It comes standard with a hitch ball bracket –all the customer needs is a standard hitch ball. Owners can expand the versatility of the Brute Force with a variety of Authentic Kawasaki Accessories available through Kawasaki dealers.

Its upright and comfortable rider position enhances the rider’s ability to interact with the Brute Force 750 4x4i, and scan the horizon and the easy to read automotive-style instrument panel. Other features include the waterproof storage box in the left front fender, and a storage compartment in the right front fender.

Features and Benefits:

Fuel injected 90-degree 749cc V-twin engine
- Digital fuel Injection provides the perfect delivery throughout the rpm range with fast throttle response
- 36mm throttle bodies are controlled by a 32-bit CPU, which monitors coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle to help ensure the perfect air fuel mixture
- Light throttle action due to low spring rate for the throttle return springs and ball bearing equipped throttle body for less friction
- High-pressure fuel pump located inside tank
- Aluminum cylinders are Electrofusion-plated for light weight, long wear and excellent heat dispersion
- Highly efficient and compact rare-earth magnets in the generator help contribute to reduced engine width
- Engine can be started in any gear when a brake is applied
- Access to the air filter requires removing only one cover
- Radiator is compact and placed high in the chassis for better protection against mud and debris

Transmission and Powertrain
- Fully automatic Kawasaki Automatic Powerdrive System (KAPS) continuously variable transmission (CVT) has high and low forward gears plus reverse
- Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits rider to distribute torque equally to left and right front wheels for maximum traction
- Air for the CVT and airbox enter from a reverse-facing snorkel located beneath the handlebars to help protect against water and mud
- Rider can select two- or four-wheel-drive operation by pressing a button located on the handlebar
- Cardan joints on drive shafts absorb torque fluctuations and reduce vibration
- Plastic front and rear axle boots provide protection from debris

Chassis
- Double-cradle frame is made of sturdy, tubular steel
- Chassis provides 9.7 inches of ground clearance
- Dual A-arm front suspension feature adjustable shocks and 6.7 inches of travel
- Independent rear suspension provides the best balance of rider comfort and handling at low to medium speeds, and provides 7.9 inches of travel
- Upper and lower front A-arms and lower rear A-arms utilize a combination of needle bearings and ball joints for smooth suspension action, stability and excellent rider comfort

Braking
- Dual front disc brakes with two-piston calipers and Kawasaki’s sealed, oil-bathed, multi-disc rear brake system provide maximum stopping power
- Electronically controlled Kawasaki Engine Brake Control helps to slow the ATV under certain conditions

Rugged Bodywork
- High-gloss, scratch resistant Thermo-Plastic Olefin bodywork stays looking good longer
- Waterproof storage box in the left front fender that compliments the easy-access storage pocket on the right side
- Bumper design provides an effective handgrip position

Relaxed Cockpit
- Comfortable, upright seating position combined with the independent rear suspension for a luxurious ride
- Rider comfort is enhanced via soft, yet firm urethane seat foam that provides lasting support for long hours in the saddle

Additional features
- Automotive-style instruments include digital speedometer, odometer, twin trip meters, clock, hour meter and fuel gauge and are mounted for easy viewing
- Fitted with pre-routed tubing and mounting brackets for easy winch wiring and installation
- Four-bulb 40-watt headlights provide maximum lighting power for nighttime rides
- Aluminum footpegs help keep weight low
- Trailer hitch bracket with 1,250 lbs. towing capacity is standard equipment
- Tire and wheel design provides an integrated look with aggressive bodywork as well as superb traction.

Harley-Davidson Road King

Harley-Davidson Road King FLHR

The Road King combines Harley-Davidson styling heritage with long-range riding comfort. The detachable windshield and hard-shell saddlebags make this a versatile motorcycle suitable for touring or commuting.

The innovative Harley-Davidson Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today's more-powerful engines.


Model Highlights

New Helical cut 5th gear for improved transmission sound
= Black powder-coated powertrain with chrome covers
= Chrome 2-1-2 dual exhaust with tapered mufflers
= Black, 28-spoke Cast Aluminum wheels with narrow whitewall tires
= Chrome, low profile fuel tank console with electronic speedometer
= Clean rear fender and low-mounted license plate module with LED illumination
= Deep FL front fender with trim
= Stainless steel, ergonomic handlebar
= One-piece, two-up Road King seat
= Clear, large Lexan quick-release detachable windshield
= Injection-molded hard saddlebags, 2.26 cu. ft. volume
= Large Hiawatha headlight and chrome nacelle
= Auxiliary passing lights

The Key Features

The Road King combines Harley-Davidson styling heritage with long-range riding comfort. The detachable windshield and hard-shell saddlebags make this a versatile motorcycle suitable for touring or commuting.

The innovative Harley-Davidson= Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s
more-powerful engines.

= Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
= 6-Speed Cruise Drive transmission with integrated Isolated Drive System (IDS)
= Dunlop “Multi-Tread” rear tire construction extends tire life by 25 percent
= Brembo 4-piston front and rear caliper with dual front rotor brake system
= Air-adjustable rear shocks
= Full-length rider footboards
= Height-adjustable passenger footboards
= Six-gallon fuel tank
= Optional Anti-lock Braking System (ABS)
= Optional electronic cruise control
= Optional Harley-Davidson Smart Security System with hands-free security fob
= Optional Chrome, Profile Laced Aluminun wheels

Honda NT700V Varadero

Honda NT700V Varadero

If you're looking for a light touring machine that's fun, easy to ride and ready to carry you to work and play seven days a week, look no farther than the new NT700V Varadero.
Fully outfitted and ready to roll, the NT700V Varadero can turn your daily commute into riding bliss and then carry you off on that weekend adventure.
With full fairing, interlinked saddlebags, a strong 680cc V-twin engine and more, the NT700V Varadero is ready for any journey you can dream up.


The Features/Benefits

= Powerful four-valve 680cc liquid-cooled V-twin engine for strong performance and economical operation.

= Programmed Fuel Injection (PGM-FI) delivers excellent throttle response over a wide range of throttle settings and riding conditions.

= Combined Braking System (CBS) with a triple-disc brake system plus the option of ABS for confident braking in varying conditions.

= Large-capacity saddlebags feature a pass-through space between the two sides to facilitate packing of longer items and provide additional carrying capacity.

= Five-position windscreen can be set at the preferred height.

= Convenient remote adjuster for rear shock spring preload adjustment facilitates changes in rear suspension settings.

= Standard model is available in Metallic Red and Metallic Silver colors. ABS model is available in Metallic Silver color only.

The Engine

Engine Type: 680cc liquid-cooled 52° V-twin
Bore and Stroke: 81mm x 66mm
Compression Ratio: 10.0:1
Valve Train: SOHC; four valves per cylinder
Induction: PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors
Ignition: Digital transistorized with electronic advance
Transmission: Five-speed

Suspension Front: 41mm telescopic fork; 4.5 inches travel
Rear: Single shock with spring preload adjustability; 4.8 inches travel
Brakes Front: Dual full-floating 296mm discs with CBS three-piston calipers
Rear: Single 276mm disc with CBS three-piston caliper; Optional ABS
Tires Front: 120/70 ZR17 radial
Rear: 150/70 ZR17 radial

Wheelbase: 58.1 inches
Rake (Caster Angle): 26.0o 50’
Trail: 115mm (4.5 inches)
Seat Height: 31.7 inches

Fuel Capacity: 5.2 gallons, including 0.9-gallon reserve

Colors: NT700V Varadero: Metallic Red, Metallic Silver

NT700V VaraderoA ABS: Metallic Silver

Curb Weight: 566 pounds (NT700V Varadero) / 571 pounds (NT700VA Varadero ABS)

Suzuki KingQuad

Suzuki KingQuad 750AXi 4x4

The Suzuki KingQuad 750 is an ATV like no other. Just like when it built the first four-wheeler, Suzuki bestowed upon its newest ATV both functional and sporting features. This new KingQuad 750 is designed to be not only the best all-around sport/utility ATV currently made, but the best QuadRunner ATV Suzuki has ever manufactured.

The KingQuad 750 is powered by a single-cylinder liquid-cooled DOHC engine with a bore-and-stroke of 104mm x 85mm - displacing 722cc. The big bore helps this four-stroke develop abundant torque, especially in the low- to mid-rpm range. The fuel-air mixture is delivered efficiently via Suzuki's own fuel-injection system, featuring technology tested through years of development in high-performance motorcycles. Advantages of the KingQuad 750's fuel injection system include reduced fuel consumption overall. Also, there are no choke operations or carburetor settings to consider. Electronic fuel injection provides better throttle response and smoother engine power than a mechanical carburetor. Finally, the KingQuad 750 has the ultimate power-delivery drivetrain and transmission with three drive modes available: two-wheel drive, four-wheel drive, and front differential-locked four-wheel drive.

Built around an all-new high-tensile steel frame, the KingQuad's suspension is fully independent. It's designed to maintain the necessary rigidity of a hard-working utility ATV as well as the light weight of an easily manageable recreational four-wheeler. New front and rear brake systems help smoothly slow the KingQuad 750 -- the front end features hydraulic brakes with 200mm discs at each wheel. The KingQuad 750 rides on newly designed, 25-inch, bias-ply Dunlop tires mounted on pressed-aluminum-alloy wheels.

With its high-arched fenders and sharp headlights, the Suzuki KingQuad 750 combines sporty appeal with utility strength.

The Engine Features
Liquid-cooled 996cc, 90 degree V-twin, DOHC 8-valve, engine - tuned for strong low & mid-range torque

= Electronic fuel injection features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and improved engine torque

= Auto Fast Idling System (AFIS), automatically sets throttle valve opening during cold engine starts by monitoring coolant temperature

= Digital ignition system provides optimum ignition timing with separate maps for each cylinder

= Semi-gear driven valve system simplifies maintenance and minimizes cam sprocket size and engine height for optimum engine placement

= Lightweight shim-under-bucket valve system operates 36mm intake and 33mm exhaust valves, plus valve timing with emphasis on low-rpm power

= SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation

= Wide-ratio 6-speed transmission with 6th gear over-drive and wide-diameter hydraulic clutch for a light pull at the clutch lever

= High-efficiency liquid cooling system for optimum engine operating temperature - includes compact oil cooler

= Lightweight magnesium valve covers, ignition cover, and sound-deadening plastic outer clutch cover

= High-mounted stainless steel exhaust system with aluminum mufflers tuned to enhance engine torque output

= PAIR - air injection system reduces CO and HC emissions - California model equipped with catalyst in exhaust to further reduce emissions

Chassis Features
Black-painted frame and swingarm for stylish appearance

= Sport-styled front fairing for wind protection, plus large comfortable seat, engine guard, and hand guards - fairing includes large multi-reflector 60/55W headlights

= Height-adjustable windshield for increased wind protection and comfort - can be adjusted to three positions in a 50mm vertical range

= Easy-to-read instruments with large speedometer and tach dials, plus LCD display for fuel level, engine temperature, odometer, tripmeters and clock

= The standard hand guards designed for maximum wind protection

= The Engine undercover shaped for ample ground clearance and sleek appearance

= Large rear luggage rack with rubber-padded platform to help keep bags and luggage in place

= The aluminum twin-spar frame and aluminum swingarm are lightweight, compact and rigid - bolt-on sub-frame simplifies maintenance

= Cartridge-style 43mm front fork with adjustable preload provides 6.3 inches of wheel travel for a comfortable ride

= Link-type rear suspension features a piggyback-style shock absorber with adjustable rebound damping and a knob-operated hydraulic preload adjuster - 6.3 inches of wheel travel

= Dual front disc brakes with large 310mm rotors and twin-piston calipers, plus single-disc rear brake with 260mm rotor and single-piston caliper

= Lightweight cast aluminum wheels - F: 2.50 x 19 with 110/80R-19 radial tire, R: 4.0 x 17 with 150/70R-17 rear tire

= Large 5.8 gallon fuel tank for long-range operation

Yamaha Rhino

Yamaha Rhino 700 FI 4x4 Special Edition Deluxe

The Yamaha Rhino 700 is a powerful, versatile, and easy to ride off road machine with side-by-side seating for two. With ride comfort better tham most ATVs, why sit behind someone with a view of their head, when you can sit comfortably beside them with a view of everything around you.
The Special Edition Deluxe Rhino 700 comes fully loaded with custom water-dip paint, piggy-back clicker shocks, a sporty sun top and rugged over fenders. No other side by side vehicle delivers a charge like this: you get unsurpassed power, handling versatility and convenience.

Features and Benefits:

The Rhino 700 is powered by a fuel injected 686cc 4-stroke engine, similar to the one found in the Grizzly 700. With fuel injection you get better cold starting, and super crisp throttle response. This engine also features roller bearing rocker arms for reduced friction and improved engine performance, with a forged piston and a carburized Chrome-Moly connecting rod for
improved durability.

Fully automatic Ultramatic transmission is the most advanced drive system in the ORV world. Not only is it simple to use select a forward gear, step on the gas pedal and go, but it also provides full engine braking to reduce brake wear.
The Ultramatic CVT system uses a special clutch design, which reduces belt wear since the belt is under constant tension. This system provides superior no-slip performance and significantly reduces belt wear.

Push-button servo-controlled "On-Command" system allows you to switch between 2WD, limited-slip 4WD and fully locked differential 4WD - all with the simple push of a dash mounted button. Real 4-wheel drive when you need it.
With Diff-lock engaged, there's no need to wait for one wheel to spin.
You have traction to all 4 wheels, immediately. This puts you in total control... you decide when you need 4 wheel drive... the machine doesn't decide for you.

Light, responsive rack and pinion steering features a fully sealed steering column and double u-jointed steering linkage for smooth action.

A single automotive-style brake pedal activates the dual front and rear disc brakes. This 4 wheel hydraulic disc brake system provides outstanding stopping performance in a variety of conditions. All four discs are tucked out of the way to prevent damage from rocks or stumps.
A mechanical console mounted parking brake with an automotive style lever features a dash
mounted warning light to avoid operating the unit with the parking brake engaged.

Large-capacity aluminum radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.

The air box is now up under the engine cover, located high and out of the way, with the crankcase breather pipe connected to the clean side. This not only reduces intake noise, but also increases water resistance. And the air filter is a foam type for premium filtering performance, that you can clean and reuse.

Sealed drive case (belt case) keeps out water and debris to minimize belt slippage. Special V-belt compartment drain plug requires no tools in the event that water enters the belt case. The frame members around the CVT case are now removable for easier access and improved serviceability

While we moved the air box, we also rerouted the V-belt intake and exhaust ducts. Both are mounted even higher to help reduce the opportunity for water and debris to enter the V-Belt housing.

Specially designed full stainless steel exhaust system features a forked header pipe for maximum power output and a screen type spark arrestor in the uffler to protect "Mother Nature".

Heavy-duty AT25 x 8-12 front and AT25 x 10-12 rear tires provide excellent off road traction and further boost ground clearance.
Note: although these tires look like ATV tires they have a much higher load rating than a standard

ATV tire. And the SE2 version adds aluminum wheels for a little added style.

Revised cargo bed can pack a total of 181kgs (400lbs) of payload. The dumping function is aided by spring loading to make tipping the dump box easier. The outside panels of the box are plastic to resist dents and rust. The inner box rear has been redesigned using fewer parts for a cleaner look. There are 4 tie points inside the cargo bed to insure load security.

Heavy duty rubber cargo bed mat helps to protect the cargo bed from scratches and dents.

Convenient, quick remove tailgate is supported by detachable "lanyards" just like a pick-up truck. The gate travel is limited by the lanyards.

Center mounted automotive style trailer hitch receiver is located at the rear of the frame. Towing capacity is 550kgs or 1212 lbs.

Large, specially designed bucket seats are extra plush and supportive for all-day driver and passenger comfort. Each seat has a small drain hole to allow water drainage in the event the unit is stored outside.
Full length heavy duty three piece skid plate and a heavy-duty front bumper protects the frame and lower components of the Rhino from rocks, logs and stumps. Rugged, large size plastic front and rear fenders with inner guards offer excellent mud/splash protection.

High tech, console mounted digital LCD meter with fuel gauge, speedometer, odometer, dual trip meters, hour meter, clock, battery voltmeter, 4WD status, transmission gear indicator, and Parking Brake indicator.

= LCD Fuel gauge

= Glove box lid

= Cup holders

Dust shield incorporated that seals against the front of the cargo bed, to reduce dust intrusion to cab area.

Convenient dash mounted, key operated, electric startingAutomatic decompression system means fast sure starts even in the winter

Automotive style shift lever (H-L-N-R) is conveniently mounted on a center console between the two bucket seats for easy access

Convenient spin-on type oil filter makes oil changes a snap

Dual 30-watt multi-reflector Krypton bulb headlights with high/low beam

function feature s Yamaha's famous "cat-eye" design

Large 30 liter (6.6 imp gal) fuel tank means lots of miles between fill ups

12 volt dash mounted DC terminal can power a wide range of accessories (the

12 volt DC outlet is not intended to be used for a cigarette lighter)

Bracket for winch mount plate is conveniently located below the rad

Operator and passenger seat belts for safety

Convenient dash mounted glove box with door

Under seat storage compartment

Electrical wiring harness is prewired for easy installation of the optional back-up light kit

Low maintenance, sealed battery provides lots of cranking power, even in cold

Sporty type steering wheel

Sun Top

Tough, blow-molded doors keep mud, water and dirt on the trail where they belong

Piggyback Gas Shocks

5-spoke aluminum alloy wheels

Factory installed over-fenders provide additional front and rear protection from mud, water and debris.

BMW K1300GT

The BMW K1300GT

The new K 1300 GT, BMW Motorrad is opening up newdimensions in the BMW Touring Encounter World in terms of both riding dynamics and grand touring qualities, enhancing the Company's worldwide leadership in the Dynamic Tourer segment.

The greater supremacy all along the drivetrain, an even higher
standard of quality, an aerodynamic fairing enhanced to a new level of
perfection, and a wide range of special equipment, the new K 1300 GT stands
for Gran Turismo of the highest calibre.
It combines maximum agility and sporting riding dynamics with the ideal package for long tours. And with its engine output 118 kW (160 hp), together with maximum torque of 135 Newtonmetres (99 lb-ft), the new K 1300 GT also benefits from the increase in engine size and stands out as one of the most powerful motorcycles in its segment.
In typical BMW style, therefore, the new K 1300 GT meets the greatest demands
in terms of riding dynamics, comfort, safety, and equipment.
Even greater supremacy and dynamic performance.

The new K 1300 GT is a High Performance Tourer featuring the innovative
and proven highlights of the new K 1300 S in terms of performance, riding
safety and technology. The drivetrain and suspension come largely from the
K 1300 S, but have been adapted in their specific features and details to
all the requirements of a dynamic tourer. The highlights in developing the new
K 1300 GT were enhanced riding dynamics and even greater supremacy
combined with outstanding comfort and optimum qualities for all kinds of
motorcycle tours.

Identical in its basic features with the power unit of the K 1300 S, the engine
has been modifi ed in terms of air flow and guidance. This increases maximum
output over the K 1200 GT by 6 kW (8 hp) to a new record level of 118 kW
(160 hp), with even greater emphasis given to superior torque for even better
traction and pulling force at low and medium engine speeds.

The K 1300 GT also sets the standard in terms of comfort, riding safety
and equipment, not only through its excellent suspension and running gear,
but also through optionally available, electronically adjustable ESA II
(Electronic Suspension Adjustment II) as well as features such as electronic
cruise control, an electrically adjustable windshield, or seat heating controlled
individually for the rider and passenger.

Ducati Monster 1100

The Ducati Monster 1100

Ducati Monster: Full stop. Fast forward.
Designed for those who want to make the ultimate expression, the 1100 stands as the new standard of excellence at the head of the Monster family. This masterpiece of style and performance is powered by the legendary and charismatic 1100cc Desmodromic L-Twin engine, famous the world over for its torque and breathtaking acceleration. Conceived and built to redefine the naked concept, the Monster 1100 boasts typical Italian design while ensuring exciting performance in true Monster style.

A MINIMUM WEIGHT, A MAXIMUM FUN
The Monster 1100 is the lightest bike in its class: The 1100 S weighs in at 168kg (369lb) and the 1100 at just 169kg (373lb)!

The exceptional handling, combined with legendary torque from the Ducati Desmo engine, results in a pure, adrenalin-filled ride. Extremely lightweight 5-spoke Marchesini wheels help reduce unsprung weight, while the beautifully shaped single-sided swingarm gives the Monster a ‘tough’ look while ensuring higher rigidity,reduced weight and enhanced road holding.Increased ground clearance enables maximum lean angles when you explore the sports side of the Monster 1100 to the full.
The 43mm Showa forks and Sachs rear suspension unit are adjustable to suit your riding style and provide that perfect ‘feel’. The short Trellis frame, developed in conjunction with Ducati Corse, uses the same tube diameter and thickness as the 1098 R, while the rear subframe is derived from Desmosedici RR technology. The fantastic Brembo braking system features a radial master cylinder feeding radially mounted four-piston calipers on twin 320mm discs, an incredible set-up that guarantees optimum braking.

THE DESMODROMIC CHARISMA
The Monster 1100 power unit is the legendary air-cooled, Desmodromic 1100cc engine with 95hp of unmistakable Ducati character. With an incredibly flexible power delivery, this engine ensures fantastic acceleration just when you need it, even on the most challenging of routes. The impressive 75,9lb-ft of torque, typical of the Ducati L-Twin Dual Spark engines, will excite with every twist of the throttle.

THE PERFECT CURVE
The 43mm Showa forks and Sachs rear suspension unit are adjustable to suit your riding style and provide that perfect ‘feel’. The short Trellis frame, developed in conjunction with Ducati Corse, uses the same tube diameter and thickness as the 1098 R, while the rear subframe is derived from Desmosedici RR technology. The fantastic Brembo braking system features a radial master cylinder feeding radially mounted four-piston calipers on twin 320mm discs, an incredible set-up that guarantees optimum braking.

The Arrival
The arrival of the new 1100 and 1100 S now increases the size of the Monster family, a family that redefines the naked motorcycle and stakes its claim as the new icon of Italian excellence.

The 'less-is-more' philosophy behind all Monsters underlines Ducati's never-ending pursuit of genuinely compact, high performance motorcycles, but these new models have succeeded in being even more 'pared down' than their predecessors.
The Monster 1100 weighs 169kg (168kg for the S version), making it by far the lightest bike in its category.

The new Monster 1100 design perfectly balances sports performance, riding pleasure and stunning looks. With its new single-sided aluminium swingarm, high level of componentry, race-oriented chassis and 15 years of evolution.

The Monster 1100 S is a pure concentrate of lightness, power, design and exclusivity. The 'S' features 43mm Öhlins forks and progressive Öhlins rear shock absorber. Carbon fibre cam belt covers, silencer guards and front fender reduce weight by a further 1kg (2.2lb).
The distinctive racing gold coloured 5-spoke wheels of the Monster 1100 S give it an elegant style and the same sporting look as historical Ducati racing models.

The start of a new era for the Monster.
The 'less-is-more' philosophy that made the Monster a motorcycling icon is now further enhanced to redefine your naked expectations. With its slim waist and wide handlebars, the new Monster is the ideal bike for all styles, whether riding downtown or enjoying the most exciting of open roads. A pumping Desmodromic heart held in the legendary Ducati Trellis frame underlines the unrivalled naked beauty of the Monster.

Designed for those who want to make the ultimate expression, the 1100 stands as the new standard of excellence at the head of the Monster family. This masterpiece of style and performance is powered by the legendary and charismatic 1100cc Desmodromic L-Twin engine, famous the world over for its torque and breathtaking acceleration. Conceived and built to redefine the naked concept, the Monster 1100 boasts typical Italian design while ensuring exciting performance in true Monster style.

Honda DN-01

The Honda DN-01

The Honda's stunning new DN-01 is in a class of its own—the world's first crossover bike.
The style like a sportbike, but offering Honda's radical new HFT Transmission, it's an automatic unlike anything you've ever seen. You can shift it into six preset ratios, or you can let it function as a stepless, no-shifting Constantly Variable Transmission, or CVT. The DN-01 is a perfect choice if you're looking to get into motorcycling or if you're just a long-time rider who wants to be on the most cutting-edge bike out there.

It's like no motorcycle you've ever seen. And it's definitely like no motorcycle you've ever ridden. The revolutionary Honda DN-01 is designed to create a nearly seamless connection between you and your riding environment, with a relaxed, low seating position and a clear view to the road ahead.
Its Human Friendly Transmission (HFT) allows you to ride in fully automatic mode, or you can shift it like a manual transmission via handy handlebar-mounted push buttons. You can even rev the powerful V-twin engine at stoplights, something most automatic transmissions won't allow.

The Honda's reputation for forging new categories in motorcycling takes its latest form in the radical DN-01. This futuristic machine combines true sporting performance with a fully-automatic transmission, a low seat height and exceptional style.

The Unique Features
- Powerful 4-valve, 680cc liquid-cooled V-twin engine.
- HFT transmission is a continuously variable, hydromechanical design that automatically and seamlessly changes drive ratios to produce strong, smooth acceleration. Unlike conventional belt-drive designs, HFT is compact, quiet, no scheduled maintenance, and features two automatic modes and a six-speed manual mode with push-button shifting.
- Low 27.2-inch seat height assures flat-footed confidence when stopped.
- Large-diameter 41mm front fork and single-shock Pro Arm® Rear Suspension (see Technology Section) provide a sporting ride on low-profile Z-rated radial tires.
- Combined ABS (LBS-ABS, see Technology Section) triple-disc brake system for sure-footed braking in varying conditions.
- Combined Braking System (CBS) provides excellent braking power for added confidence in a wide range of operating conditions. CBS applies front braking force whenever the rear brake is operated.
- On the DN-01, equipped with dual front disc brakes with three-piston calipers and a twin-piston rear caliper, rider application of the front-brake lever activates all six brake pistons in the front calipers. Application of the rear-brake pedal activates the dual pistons of the rear caliper and the center piston of the front-left caliper.
- Anti-Lock Braking System (ABS w/CBS) utilizes modulators- one each on the front and rear wheels- driven directly by specially developed electric motors. In operation, an Electronic Control Unit (ECU) monitors wheel and vehicle speed. If one of both of the wheels approach a locking condition, the modulators, via a signal from the ECU, lower hydraulic pressure by acting directly on the brake piston(s). As wheel speed re-approaches motorcycle speed, the hydraulic pressure is increased. This entire process is repeated numerous times in just one second, resulting in optimal braking pressure and enhanced rider control.
- Beautiful aerodynamic design provides protection from the elements.

The Engine/Drivetrain :
- Compact 680cc, liquid-cooled SOHC 52-degree V-Twin provides substantial torque and power for everyday commuting and spirited backroad riding.
- Programmed Fuel Injection (PGM-FI, see Technology Section) with twin 40mm throttle bodies and high-performance 12-hole injectors provide excellent throttle response and fuel economy
while contributing to low emissions.
- Auto enrichment system is integrated into PGM-FI to optimize the air/fuel mixture on cold starts and eliminates the need for a choke.
- ECU-controlled, closed-loop emission control system with oxygen sensor manage the air/fuel mixture and reduce exhaust emissions.
- Front-mounted radiator receives ducted air from fairing shroud to maximize cooling.
- 2-into-1 stainless steel exhaust system with chrome-plated triangular shaped tailpipe is designed to centralize mass for improved handling.
- HFT offers two fully automatic, infinitely variable transmission modes - 'D' (Drive) mode for ordinary riding, and 'S' (Sport) mode for sharper acceleration. In addition, a push-button-selectable, six-speed manual mode allows the rider to upshift/downshift with the simple operation of left thumb-activated buttons.
- The ECU-controlled HFT automatically 'downshifts' when climbing steep grades to maintain optimum power.
- HFT provides 'lock-up' in cruising mode for maximum fuel economy.
- HFT features button-activated mechanical neutral, permitting engine revving when stopped. Mechanical neutral is automatically engaged whenever the engine is turned off, allowing easy maneuverability.

Suzuki Boulevard C109RT

The Suzuki Boulevard C109RT

The Suzuki Boulevard C109R. It combines classic cruiser styling with renowned Suzuki V-twin power in such a striking way that it establishes a new standard for the class- and completes the Suzuki Boulevard line of cruisers. The key to the C109R's performance is its 109-cubic-inch engine with Suzuki fuel injection- the same basic powerplant used by the awesome M109R, which traces its technological heritage to Suzuki's championship winning GSX-R supersport bikes.

Ride on the C109R and you'll notice that it boasts its own power characteristics, with more torque down low for extraordinary acceleration. The C109R establishes its own identity with its styling. It has pullback handlebars, floorboards that let you kick your feet out, a spacious, relaxed riding position and its own slash-cut mufflers. For maximum open-road comfort, check out the touring versions - the C109RT AND C109RSE, with a standard windshield, saddlebags, passenger backrest, engine guards and light bar.


The Key Features :
- Innovative and classic design combines the clean, sweeping good looks of a classic cruiser with high performance provided by Suzuki advanced technology
- Special Touring model featuring a custom designed windshield, an attractive studded seat, beautiful leather saddlebags, and a comfortable passenger backrest.

The Engine Features :
- 1783cc, 8-valve DOHC, 54 degree, liquid-cooled, fuel injected V-twin engine designed for strong throttle response and massive torque output
- 112mm bore and 90.5mm stroke utilizing forged aluminum alloy pistons with short skirts, and cut away sides riding on chrome moly steel connecting rods
- Unique new two-stage cam drive system creates a compact cylinder head design and reduces overall engine height and creates a lower center of gravity
- Each bore is lined with Suzuki's race proven SCEM (Suzuki Composite Electrochemical Material) for optimum heat transfer, tighter piston-to-cylinder clearances and reduced weight
- Crank inertia for the C109R is designed for increased torque delivery at low speed and for reduced vibration across the rpm range
- A compact dry sump lubrication system SASS (Suzuki Advanced Sump System) provides reduced engine height, a lower crankshaft position and lower center of gravity
- Five speed transmission features carefully selected gear ratios for comfortable cruising in a variety of riding situations
- Three piece airbox uses dual intakes working through a pleated fabric air cleaner element
- The 2-into-1-into-2 stainless steel chromed exhaust system features Suzuki's digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and powerful V-twin sound
- Electronic fuel injection system features the Suzuki Dual Throttle Valve system (SDTV) with 52mm throttle bodies - maintains optimum air velocity for smooth low-to-mid range throttle response
- A new Idle Speed Control (ISC) system improves cold starting and stabilizes engine idle speed in various conditions
- Dual spark plug per cylinder ignition system is controlled by the powerful 32 bit ECM for improved combustion efficiency and reduced exhaust emissions

The Chassis Features :
- High-tensile double cradle steel frame is built to comfortably handle all the power and torque while delivering agile handling and a plush smooth ride
- Cast alloy wheels feature a 10 spoke radial design for a clean and classic look. The cast wheels measure a 3.50 x 16 inch up front and a massive 8.00 x 16 inch rear tire wearing a huge 240mm radial tire
- Combined braking system utilizes three pistons per caliper for the dual disc front braking system. When applying the front brake lever two pistons work at the front. When using the rear brake pedal both front brake and rear brake systems are combined using the rear brake and the middle piston of the front brake calipers through a delay valve.
- Stylish pull back type handlebars feature a deep chrome plated finish and a beautiful wide design for a massive look
- 49mm front forks feature thick chrome covers for a stylish new look and feature 130mm of wheel travel
- Link type aluminum swingarm creating a rigid tail look with light weight and high rigidity
- Stylish and wide fuel tank design is built highlight the classic lines of the C109R with a large 5-gallon fuel capacity for maximum rider enjoyment
- Spacious floorboards for increased rider comfort and control

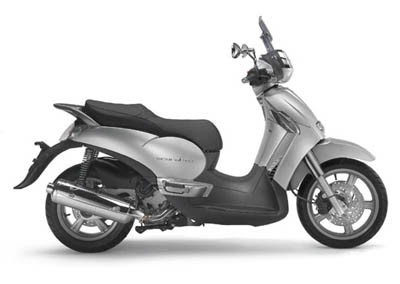

Aprilia Scarabeo 500 ie

The PERFORMANCE PLUS SAFETY
Though light in weight, equipped with an automatic variator, and aerodynamically protective, it gives performance that you need to tackle medium and even long journeys.
The Lightweight, agile and fast, Scarabeo i.e. is as comfortable as any motorcycle, but far, far easier to ride. Its compact dimensions make it the perfect vehicle for traffic-intensive routes and easy parking, while high performance engines guarantee nippy overtaking.

The ENGINE
The 500 cc engine is a single cylinder, liquid cooled, four stroke power plant with a single overhead cam and a four valve head.

=The Liquid cooled single cylinder four stroke. Single overhead cam (SOHC), 4 valves.
=Fuel : Unleaded petrol.
=Bore and stroke : 92 x 69 mm.
=Displacement : 460 cc
=Compression ratio : 10.5:1.
=Maximum power : 29 kW (39 HP) at 7,500 rpm
=Maximum torque : 43 Nm at 5,500 rpm
=Fuel system : Electronic fuel injection.
=Ignition : Electronic CDI ignition with automatic timing.
=Starting : Electric.
=Alternator : 12 V – 380 W.
=Lubrication : Wet sump. Forced circulation with mechanical pump.
=Gearbox : Automatic variator.
=Clutch : Automatic centrifugal dry clutch.
=Primary drive : V belt.
=Final drive : Gearbox.
=Frame : High strength tubular steel frame with closed double cradle.
=Front suspension : 40 mm hydraulic fork. Wheel travel 103 mm.
=Rear suspension :
Engine acting as swingarm. Two double acting shock absorbers with 4 spring preload settings. Wheel travel 100 mm.
=Brakes :
Front: Twin 260 mm stainless steel discs. Floating calipers with two parallel pistons. Integral braking system.
Rear: 240 mm stainless steel disc. Fixed caliper with two pistons. Integral braking system.

=Dimensions:
Overall length: 2,263 mm
Overall width: 765 mm (at handlebars)
Overall height: 1,411 mm (at windshield)
Wheelbase: 1,535 mm
Seat height: 780 mm
=Dry weight : 189 kg
=Tank capacity : 13.2 litres (3 litres reserve)
=Standard equipment : Car-type electronic anti-theft system with remote control.

THE CHASSIS
Like all Aprilia motorcycles, the Scarabeo i.e. benefits from the tremendous know-how that Aprilia has built up over many years of success in racing. The frame and suspension are designed to let you make full use of the generous performance of its electronic injection engines.
The double cradle frame is made from high strength steel, and is specially designed to guarantee fantastic torsional rigidity and amazing strength. This highly rigid and efficient frame ensures that Scarabeo i.e. remains totally stable even at high speed.
The hydraulic fork incorporates robust 40 mm stanchions for precision control and steering and effortless shock absorbing even on long journeys.

Kawasaki Vulcan1600 Nomad

The One of Kawasaki's most popular models gets more chrome, more comfort and more cubic centimeters for 2005.
The new Vulcan® 1600 Nomad™ retains the elegant style of the Vulcan 1500 Nomad, but features more chrome, enhanced passenger comfort, and the big V-twin engine's displacement has been boosted to 1,552cc to give it an even keener powerband
The displacement has increased from 1,470 cm3 to 1,552 cm3. VN1500L exhaust characteristics are maintained; fuel injection settings are changed accordingly. The greater displacement substantially increases power feeling.

The Chassis Updates
Frame is essentially the same as that of the VN1600A with reinforced gusseting in the middle section.
Fork offset of 15 mm (5 mm less than that of VN1600A) results in ideal handling for this model.
Engine guard mounted to the downtube protects the engine in the event the bike falls over.
Pannier guards prevent damage to the panniers in the event the bike falls over.

The Styling/Ergonomic Updates
In addition to the windscreen and panniers from the VN1500L, the new Classic Tourer receives a number of new features designed to increase passenger comfort. These include the addition of a backrest, passenger grab rails and a change from pillion footpegs to footboards.
Backrest tailored to fit pillion's body provides high-comfort support for long-distance rides.
Elegantly crafted aluminium die-cast grab rails replacing the seat band of the VN1500L are shaped to fit the pillion's hands. In addition to providing additional passenger security, their chrome-coated finish contributes to the improved high-quality appearance.

Pillion footboards give passengers more choice of foot position, which translates to greater comfort.
Reshaped rear seat complements the backrest and grab bars and contributes to the increased passenger comfort.
New seat construction features leather seat covers bonded to urethane for high-quality surface.
Revised front emblem and an emblem added to the rear of the bike contribute to the enhanced quality.

Peugeot HYmotion3 Compressor Concept

This is based on the extensive experience of Peugeot Motorcycles, specialists in the scooter field, as well as the creativity and innovative capabilities of stylists and engineers working for Automobiles Peugeot.

The Style
On the basis of a frame designed by Peugeot Motorcycles, Peugeot car stylists unveiled a resolutely sporty and avant-garde design which also captures the spirit of their latest creations, for example the Peugeot 308 RC Z concept car.
Two polished aluminium roll-over bars support the "bubble" which protects the two occupants. This use of materials is strongly reminiscent of the RCZ concept.

These bars make a significant contribution to the vehicle's overall personality and balanced proportions. In addition to the comfort provided by this structure, the bars end in a handle which can be used by the rear passenger. To preserve the vehicle's clean lines, there are no rear-view mirrors, this function being carried out by two display screens on the instrument panel offering optimal rear vision.
Viewed from the front the vehicle creates a strong impression of modernity with its row of light emitting diodes (LEDs) on either side of the base of the front windscreen. These provide highly efficient lighting and also ensure that the vehicle can be seen easily in traffic.

Tapered front mudguards, strong lines and hi-tech rear lights... each detail adds to the dynamism of the Peugeot HYmotion3 compressor. A dynamism which bears a strong resemblance to models in the Peugeot car range...
Operating principle: simple, efficient, automatic and transparent for the user
The vehicle's petrol engine has a power output of 15 kW (20 bhp). It is the supercharged 125 cc engine featured in the Peugeot Satelis scooter, this modern engine is widely acclaimed for its performance in its market segment.

Two electric motors, one in each wheel, are present at the front of the vehicle. With a power of 2 x 3 kW, they are powered by "lithium-ion" batteries and recharged by an energy recovery system which operates during deceleration and braking.
Therefore, there are no mechanical connections between the front and the rear, everything being controlled electronically ("by wire"), allowing optimisation of the available space.

This hybrid technology, as well as its special innovative layout, is an important vector of research and development for Peugeot. Known internally as "HYmotion", this system is presented in multiple formats, featuring different types of engine, on Peugeot's stand at the Paris Motor Show. This concept demonstrates that the technology can be installed in any type of vehicle. In addition, different types of conventional engine can be combined with different types of electric motor.
The HYmotion technology in this case is particularly miniaturised to ensure an environmental performance of the highest order.

The suspension and the structure are designed to take account of this technology's application. The parallelogram type front suspension (i.e. with tilting wheels) has a transverse damper at its centre and ensures optimal driveability and vehicle stability. These technical components are located on the wheel hubs, therefore reducing the vehicle's centre of gravity following the example of the low-slung tubular frame.
The Braking, rendered more efficient by the presence of an ABS system, it relies on three ventilated discs and, above all, the front electric motors, which recover energy to recharge the batteries. This assembly (three wheels + electric motor braking) also reduces the braking distance by around 30% compared to a two-wheel scooter equipped with traditional brakes.
